New

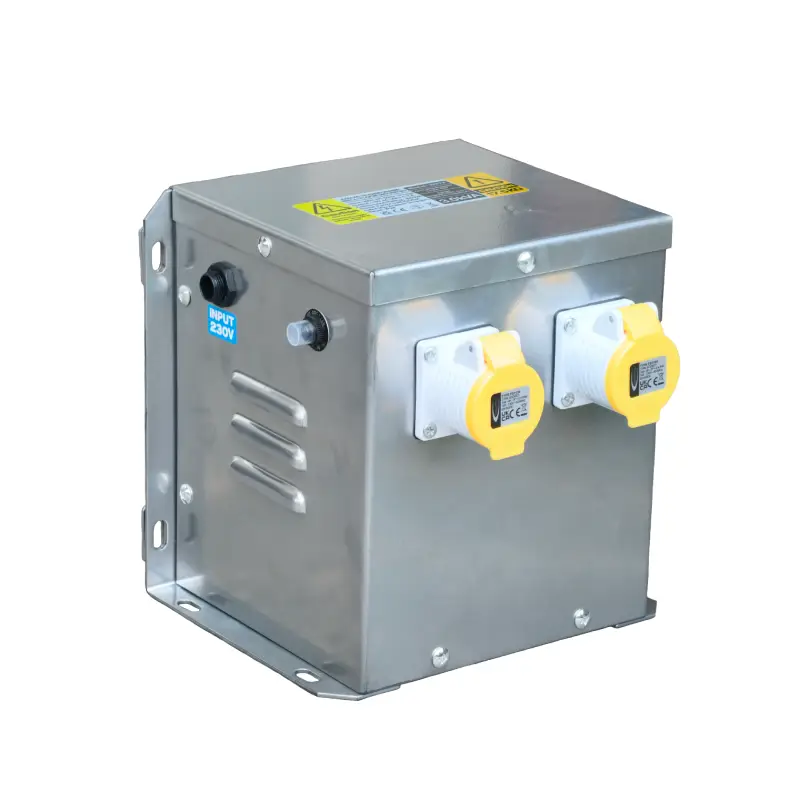

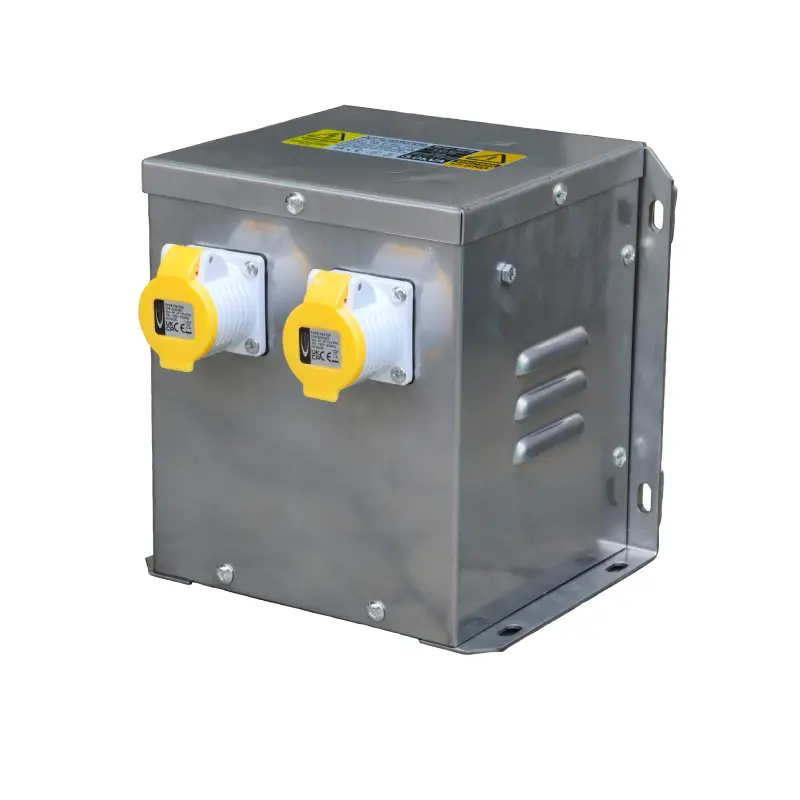

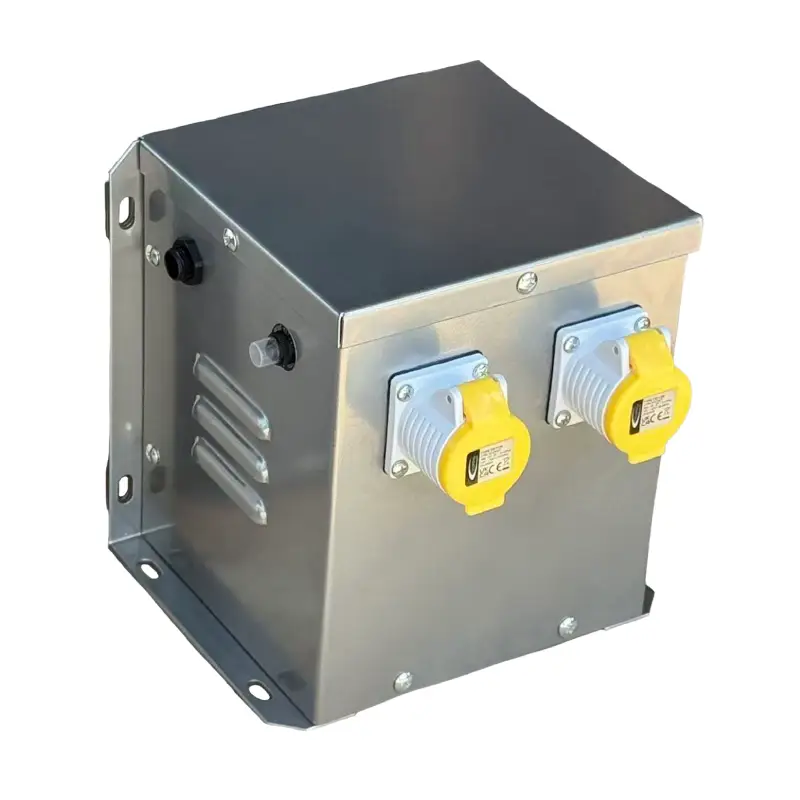

3kva intermittent transformers thermal trip with 2 x 16 sockets – (10972)
Product Features:
Part No.: 10972
Power : 3.0KVA
Input Voltage : AC 230V ( 50-60 Hz )
Output Voltage : AC 110V C.T.E
Technical Specifications
| Type | Isolation | Product | 3.0KVA Wall Mounted Transformer |
| Model No | WM30/2 | ||
| Safety | Safety Level | Class F | |
| IP Level | IP22 (indoor using) | ||
| Safety Certificates | CE & UKCA | ||
| ROHS Directive | Compliant | ||
| Material | Case | Steel | |
| Lid | Steel | ||
| Electrical | Input Voltage | 230V AC 1 Phase | |
| Output Voltage | 110V AC C.T.E | ||
| Frequency | 50/60Hz | ||
| Tool Rating | 3000VA | ||
| Cont. Rating | 1650VA | ||
| Incoming Protective Devices | Resettable Thermal Overload Trip | ||
| Input | 18mm conduit entry on side of case for 230Volt input | ||
| Output | 2X16A 110volt output sockets (IEC 60309) | ||
| Enclosure Type | IP22 Steel Wall/Floor Mount | ||
| Carton Box Dimension | Quantity of Each Carton | 1PC | |
| Net Weight | Approx. 17.5KG | ||
| Gross Weight | Approx. 18.2KG | ||
| Outer Box Dimension | 27.5x25.5x29 CM | ||
