110V Extension Lead 25m 4mm Cable 32A – (10839)

Login to view price

Product Features:

  • Cable Length: 25m
  • Cable Thickness: 4.00mm
  • Voltage: 110V
  • Connections: 32A Plug and Coupler
Part Number: 10839

Download PDF   Make An Enquiry

Browse our full range of 110V extension leads, or add one of our 110V cable reels for longer runs.

Description

25m 110V 32A site extension lead

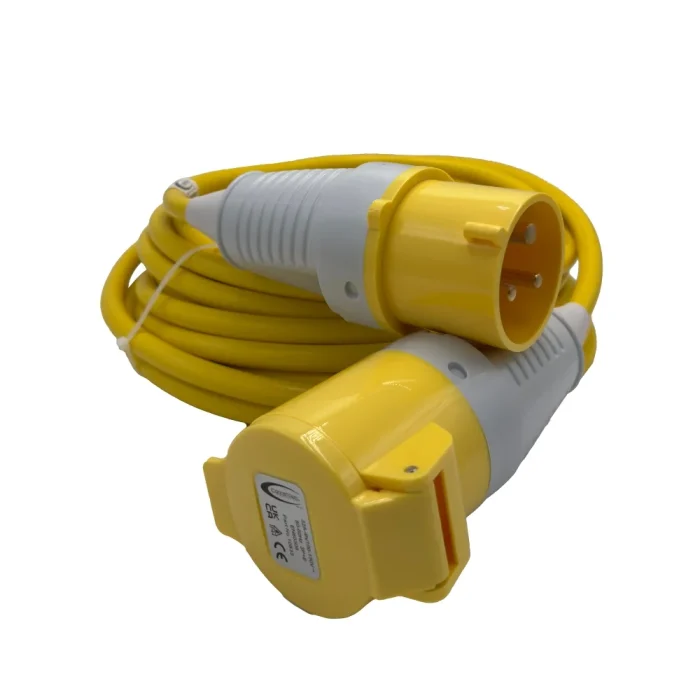

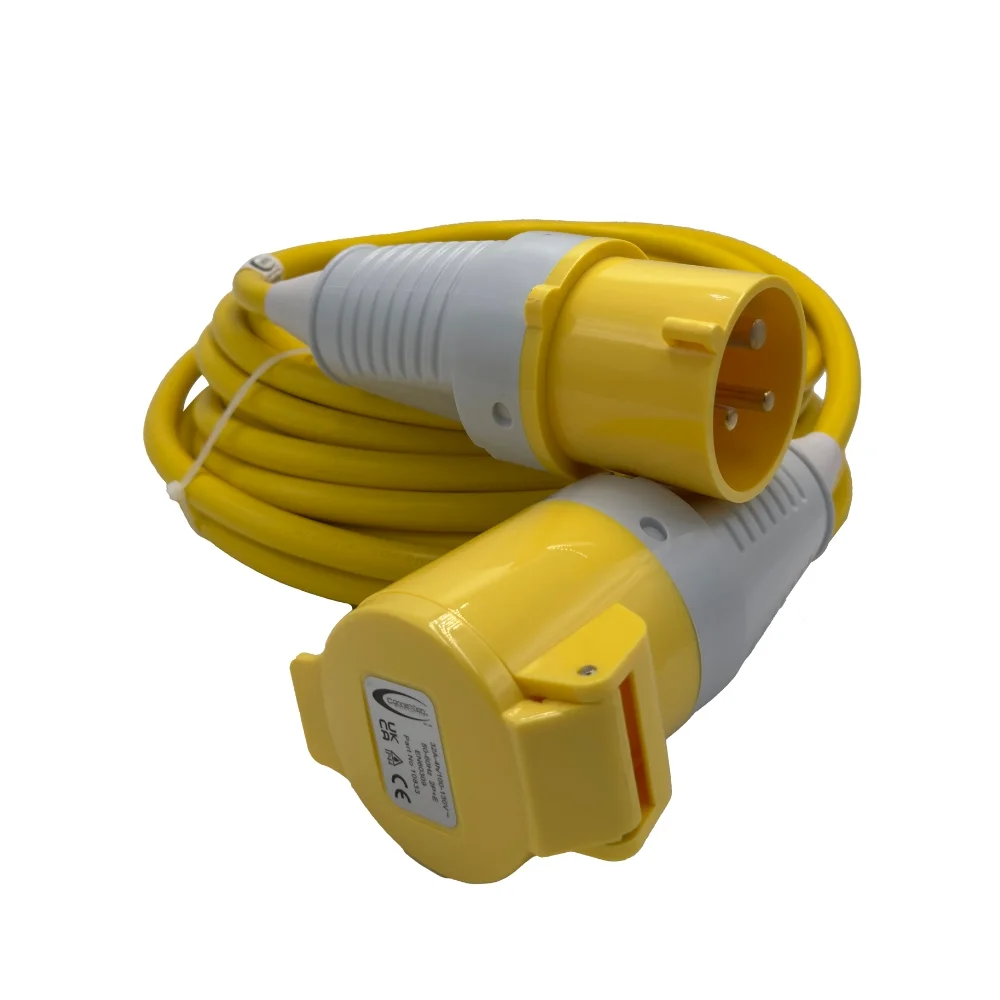

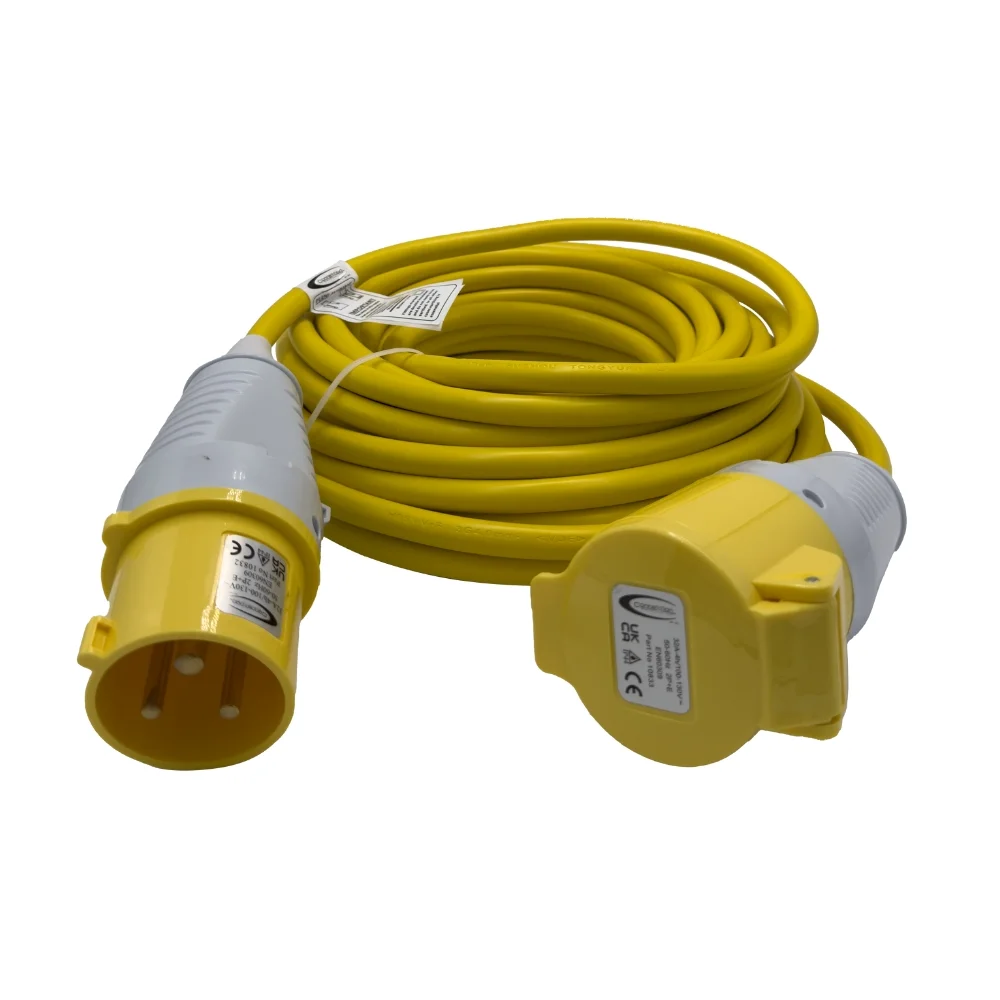

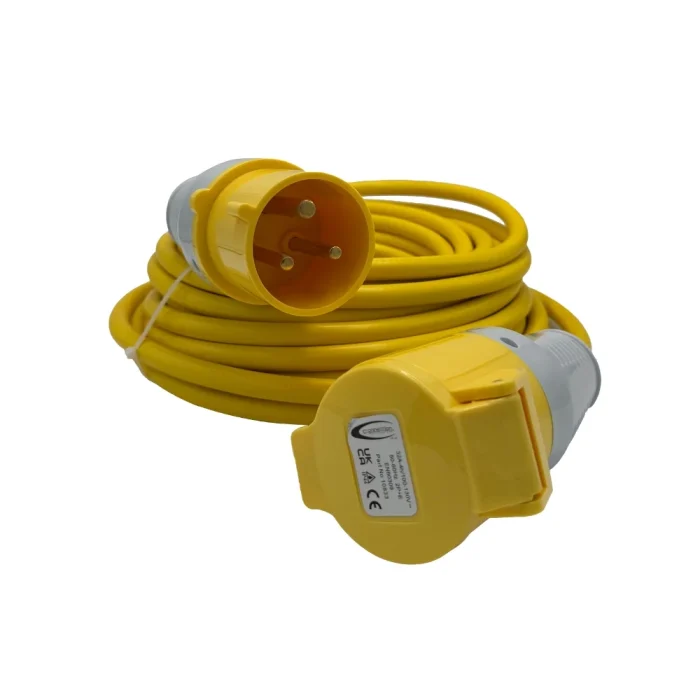

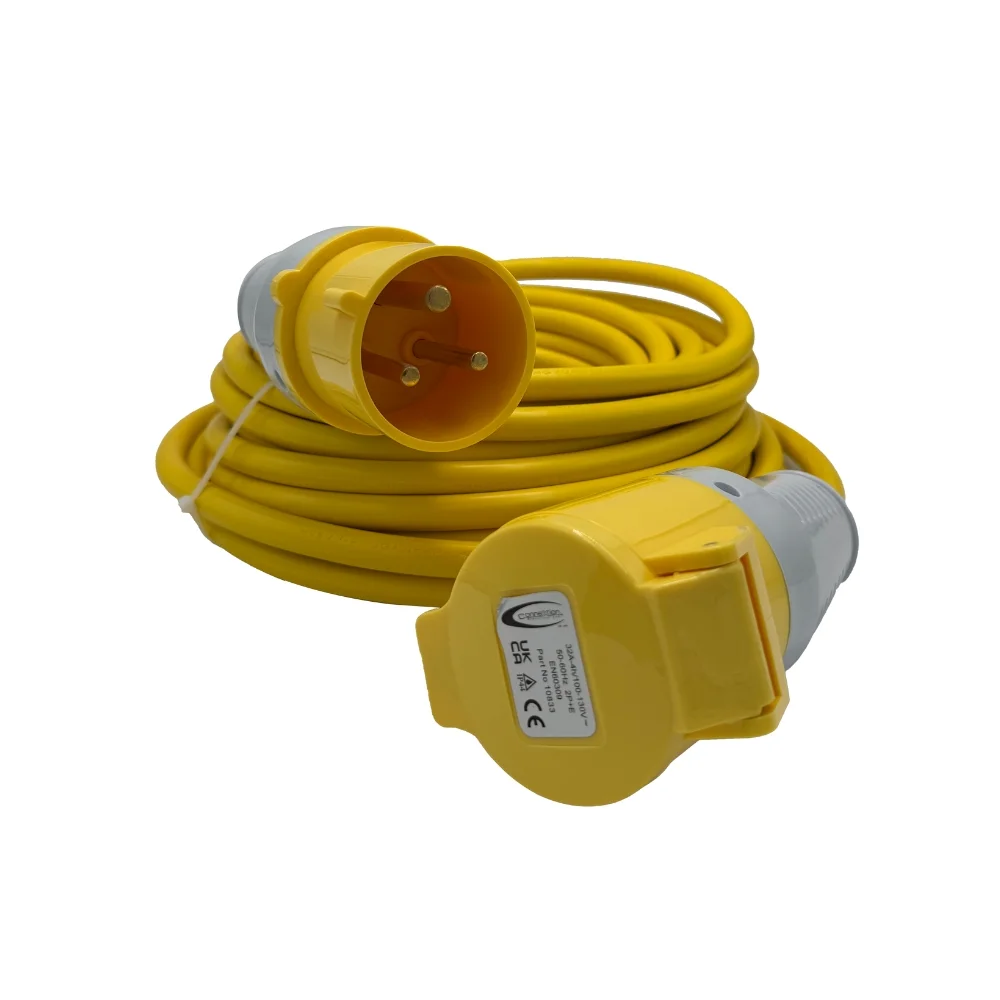

The Connexion 10839 is a yellow 25m 110V extension lead with 4.0mm² 3-core PVC cable, a 32A 110V plug and a 32A 110V coupler. It is our heaviest long 110V lead.

On UK construction sites, portable tools and lighting normally run on 110V supplied by a centre-tapped-to-earth site transformer, and 110V industrial connectors are colour-coded yellow under BS EN 60309.

Key features and specifications

Part number10839
Voltage110V
Cable length25m
Cable size4.0mm² 3-core PVC
Plug32A 110V
Coupler32A 110V
ColourYellow
IP ratingIP44
Safety classClass I
Frequency50/60Hz
Maximum current32A
ConstructionPVC/copper cable, nylon + PP plug

Applications

Long, heavy-load 32A 110V runs on construction and industrial sites, feeding splitter boxes and high-current equipment.

Choosing the right product

For shorter runs choose the 14m 4mm 32A lead (10826). A lighter 25m 32A alternative is the 25m 2.5mm 32A lead (10838).

Frequently asked questions

When do I need a 32A 110V extension lead?

Use a 32A lead only when both the outlet and the equipment are 32A, for example from the 32A outlet of a larger site transformer to a 32A splitter box or heavier machine. Most hand tools use 16A connectors.

Why choose 4mm cable?

A 4mm² conductor has lower resistance than 2.5mm², so it loses less voltage over long runs.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Not sure which cable size you need? Read our extension lead cable size guide (1.5mm vs 2.5mm vs 4mm).

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specifications
Product110v Extension lead 25m 4mm Cable 32amp
Part No10839
Safety LevelClass I
IP LevelIP44
Safety CetificatesCompliant
RoHS DirectiveCompliant
CasePVC + Copper for Cable, Nylon + PP for Plug/Coupler
Input VoltageAC110V
Output VoltageAC110V
Frequency50/60Hz
Input Current32A MAX.
Cable4.0mm 3 core PVC cable
Dimensions25m in Length
ColorYellow

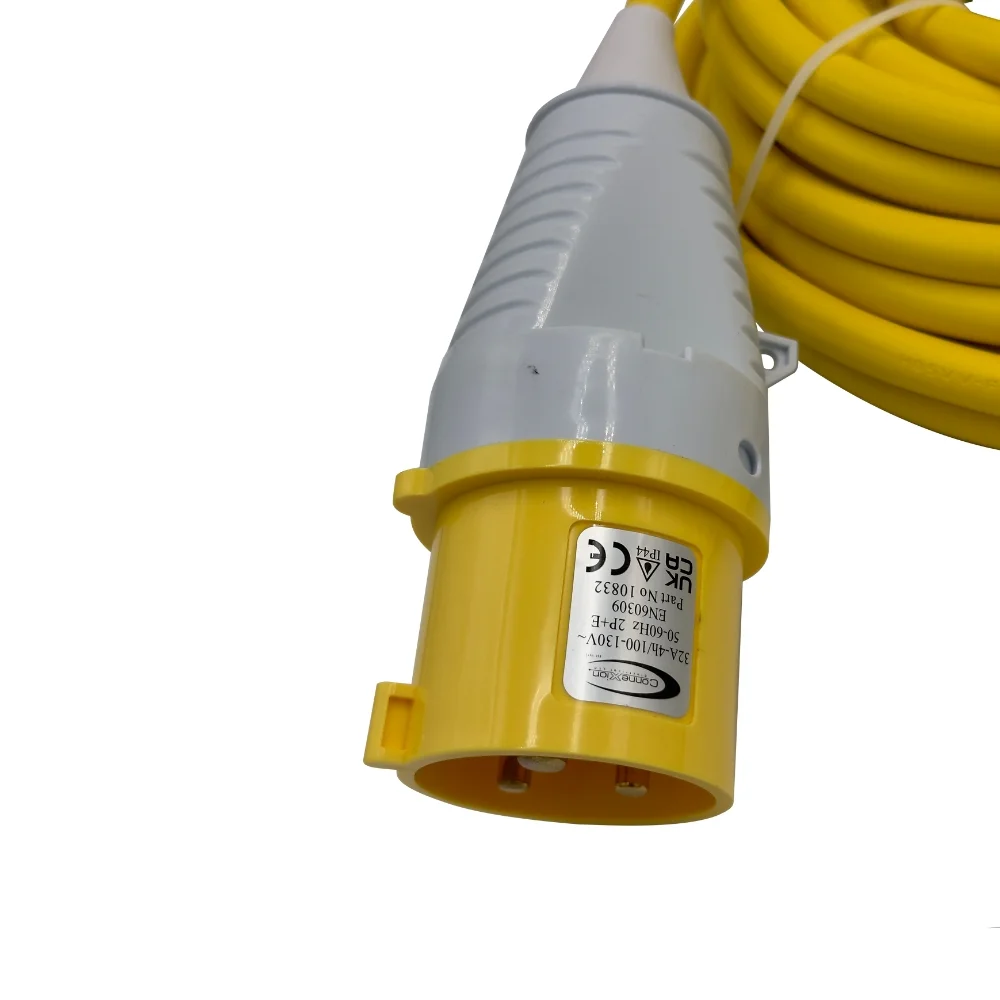

Plug110V 32A Plug
Coupler110V 32A Coupler
Packing TypePlastic Bag + Carton Box
Quantity of Each Carton4pcs
Net Weight15KGS
Gross WeightApprox.15.5KGS
Outer Box Dimension40X27X30
Inner Core Colours :Brown, Blue and Green/Yellow
Voltage Rating :300/500 Volts
Main Application :Supply 110v Power to tools and lighting on site
Sheath Thickness mm :1.3mm
Mean Overall Diameter (upper limit) mm :13.0mm
