Description

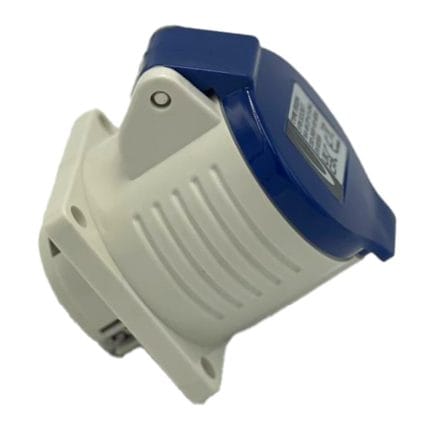

Blue 240V 16A in-line coupler

The Connexion 10609 is a blue 240V 16A 2P+E industrial coupler with an IP44 rating. It is the socket end of a 240V 16A industrial lead and accepts a matching 16A 240V plug.

Blue industrial connectors identify a 230/240V supply under the BS EN 60309 colour code, while yellow identifies 110V. The two are deliberately keyed differently, so a blue plug will not fit a yellow socket.

Key features and specifications

Part number10609
Voltage240V
Current rating16A
Configuration2P+E
IP ratingIP44
ColourBlue / white
Dimensions / weight7 x 3 x 3 cm, 120g
CertificationsCE, RoHS, UKCA
GTIN5023003001060

Applications

Making up or repairing 240V 16A industrial leads for workshops, outdoor equipment, events and other temporary 240V installations.

Choosing the right product

Use with the 240V 16A IP44 plug (10608). For a 32A circuit choose the 240V 32A socket. To run a standard 13A appliance from a 16A outlet, the 13A plug to 16A socket fly lead (10872) or 16A plug to 13A socket fly lead (10873) may be what you need.

Frequently asked questions

What voltage is a blue industrial plug?

Blue identifies a 230/240V single-phase supply under the BS EN 60309 colour code. Yellow is used for 110V site equipment and red for 400V three-phase.

What is the difference between a coupler and a socket?

A coupler is an in-line socket on a flexible cable; a socket is fixed to a wall or panel.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specifications
Product240V 16amp 2P+E IP44 Industrial Coupler
Part Number10609
Product Dimensions7 x 3 x 3 cm; 120g
Item model number10609
Number of Items1
ColourBlue,white
Included ComponentsCoupler
Voltage240 volts
Item Weight120 g
Guaranteed software updates untilunknown
GTIN5023003001060
