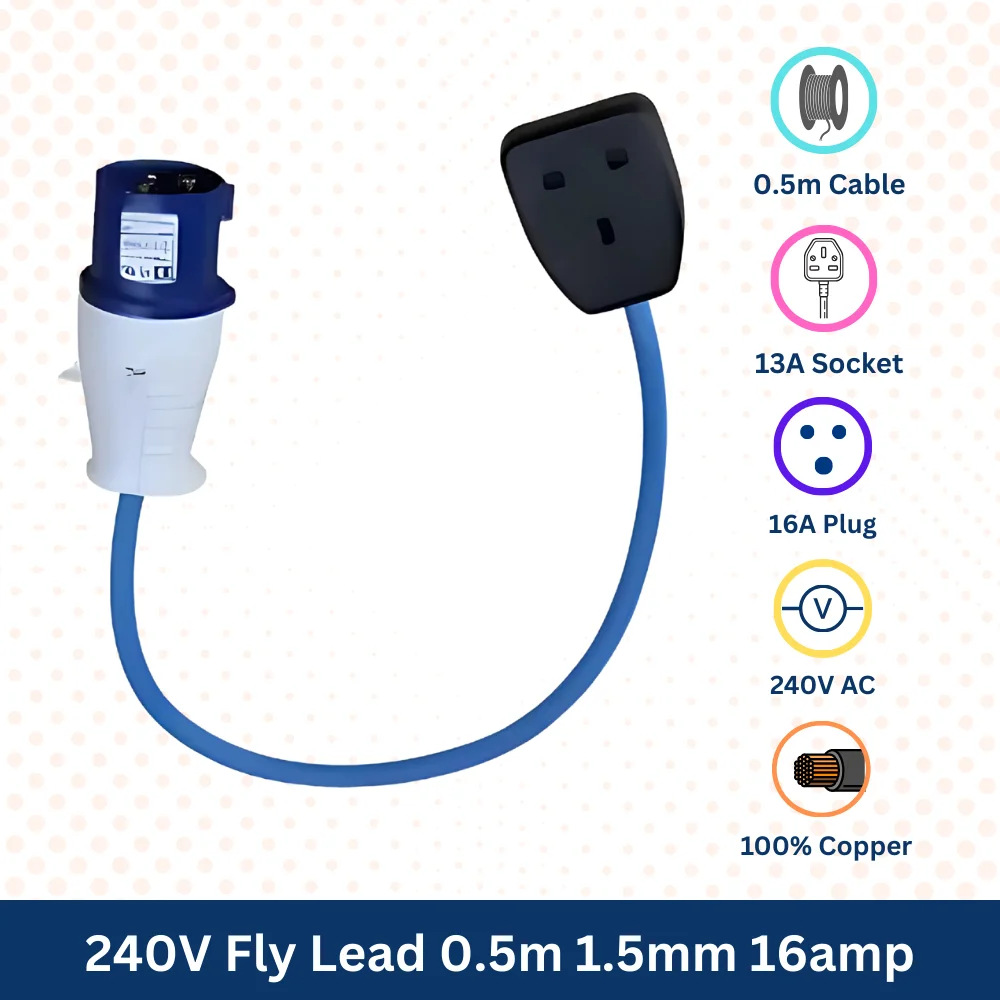

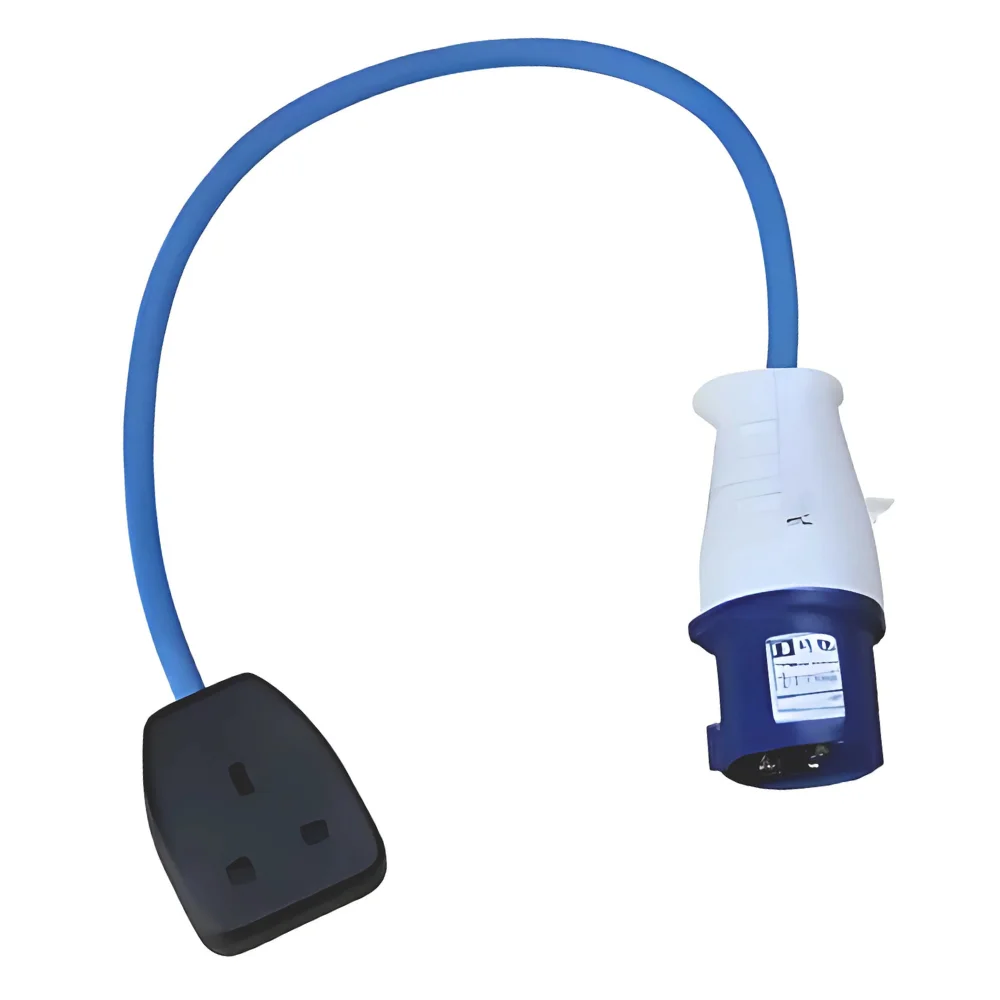

240V Fly Lead 0.5m 1.5mm, 16A Plug to 13A Socket – (10873)

Login to view price

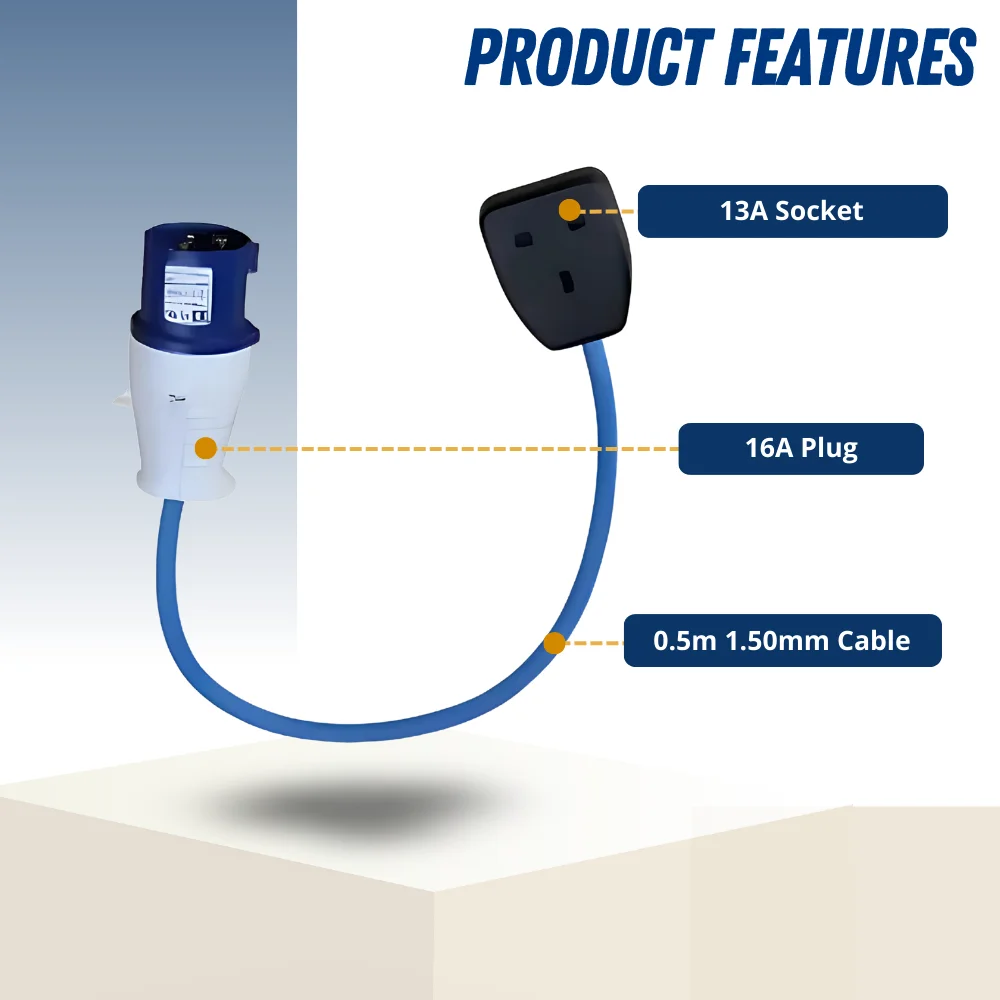

Product Features:

  • Cable Length: 0.5m
  • Cable Thickness: 1.50mm
  • Voltage: 240V
  • Plug: 16A
  • Socket: 13A Single Socket
Part Number: 10873

Download PDF   Make An Enquiry



Browse our full range of 240V extension leads, or add one of our 240V cable reels for longer runs.

Description

Use a standard 13A appliance on a 16A outlet

The Connexion 10873 is a 0.5m 240V fly lead with 1.50mm cable, a blue 16A 240V industrial plug and a single 13A 240V socket. It lets standard UK 13A-plugged appliances run from a 16A 240V industrial outlet, for example on a generator, hook-up point or distribution board.

Blue industrial connectors identify a 230/240V supply under the BS EN 60309 colour code, while yellow identifies 110V. The two are deliberately keyed differently, so a blue plug will not fit a yellow socket.

Key features and specifications

Part number10873
Voltage240V
Cable length0.5m
Cable size1.50mm
Plug16A 240V
Socket13A 240V single
IP ratingIP44

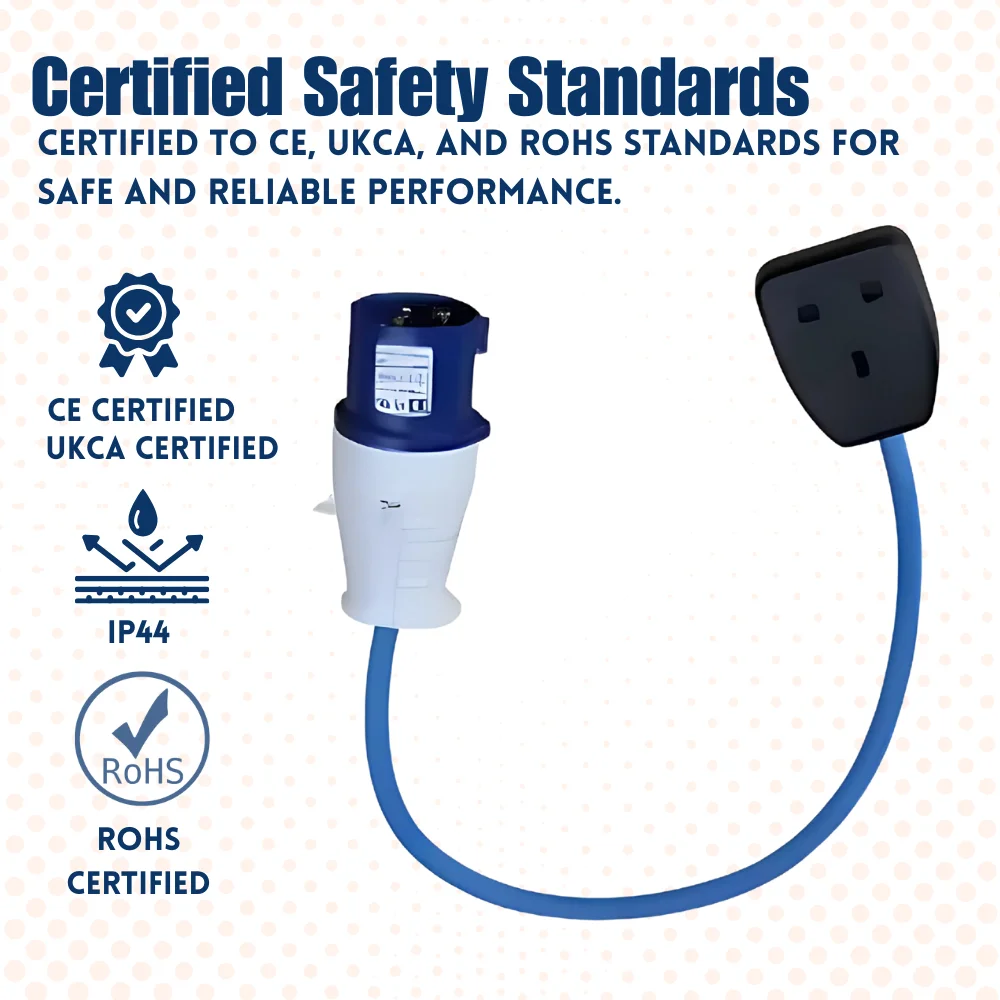

CertificationsCE, RoHS, UKCA
GTIN5023003000186

Applications

Using 13A tools and appliances from 16A blue outlets on generators, events power, workshops and hook-up points.

Choosing the right product

For the reverse (16A equipment into a 13A socket) choose the 13A plug to 16A socket fly lead (10872). Extend a 16A supply with the 240V 14m 16A lead (10805).

Frequently asked questions

What is a 240V fly lead used for?

It adapts between two connector types; this one converts a 16A industrial outlet into a 13A UK socket.

What voltage is a blue industrial plug?

Blue identifies a 230/240V single-phase supply under the BS EN 60309 colour code. Yellow is used for 110V site equipment and red for 400V three-phase.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specification
Product240V Fly Lead 0.5m 1.5mm 16amp Adapter Plug and Socket
Part No10873
Input240V
Output240V
Cable Diameter1.50mm Cable
Cable Length0.5m
Socket13A 240V Single Socket
Plug16A 240V Plug
IP RatingIP44
CertificationsCE, ROHS, UKCA
GTIN5023003000186
SKU10873
