240V Extension Lead 14m 1.5mm Cable 16A – (10805)

Login to view price

Product Features:

  • Cable Length: 14m
  • Cable Thickness: 1.50mm
  • Voltage: 240V
  • Plug and Socket: 16A
Part Number: 10805

Download PDF   Make An Enquiry

Browse our full range of heavy-duty 240V extension leads, or add one of our 240V cable reels for longer runs.

Description

14m 240V lead with 16A industrial connectors

The Connexion 10805 is a 14m 240V extension lead with 1.50mm blue cable, a 16A 240V industrial plug and a 16A 240V industrial socket. It is used where equipment is fitted with blue 16A (BS EN 60309) connectors.

Blue industrial connectors identify a 230/240V supply under the BS EN 60309 colour code, while yellow identifies 110V. The two are deliberately keyed differently, so a blue plug will not fit a yellow socket.

Key features and specifications

Part number10805
Voltage240V
Cable length14m
Cable size1.50mm
Plug16A 240V
Socket16A 240V
Cable colourBlue
IP ratingIP44
CertificationsCE, RoHS, UKCA
GTIN5023003000131

Applications

Workshops, events, outdoor and industrial 240V equipment with 16A blue connectors.

Choosing the right product

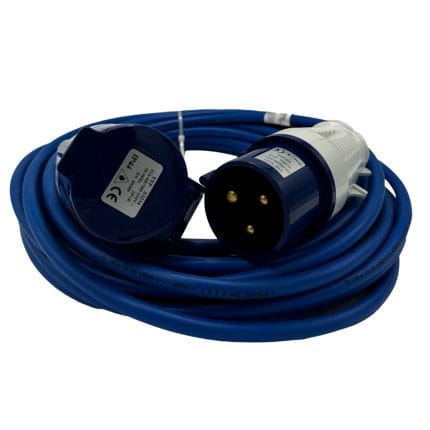

For 13A domestic-style plugs use the 240V 14m 13A lead (10804); for 32A use the 240V 14m 32A lead (10823). Spare connectors: 16A plug (10608) and 16A coupler (10609). Split the supply with the 240V 3-way splitter (10615).

Frequently asked questions

What voltage is a blue industrial plug?

Blue identifies a 230/240V single-phase supply under the BS EN 60309 colour code. Yellow is used for 110V site equipment and red for 400V three-phase.

What is the difference between a 110V and a 240V extension lead?

A 110V lead is yellow and uses 110V industrial connectors to carry the reduced-voltage supply from a site transformer, which is standard practice on UK construction sites. A 240V lead is blue (industrial) or uses 13A plugs and runs from mains voltage. The connectors are deliberately incompatible.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Not sure which cable size you need? Read our extension lead cable size guide (1.5mm vs 2.5mm vs 4mm).

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specification
Product240V Extension Lead 14m 1.5mm Cable 16amp
Part No10805
Input240V
Output240V
Cable Diameter1.50mm Cable
Cable Length14m
Socket16A 240V Socket
Plug16A 240V Plug
IP RatingIP44
CertificationsCE, ROHS, UKCA
GTIN5023003000131
SKU10805
