110V Extension Lead 25m 1.5mm Cable 16A – (10827)

Login to view price

Product Features:

  • Voltage: 110V
  • Cable Length: 25m
  • Cable Diameter: 1.5mm
  • plug: 16amp
  • coupler: 16amp

Part Number: 10827

Download PDF   Make An Enquiry

Browse our full range of 110V site extension leads, or add one of our 110V cable reels for longer runs.

Description

25m 110V 16A site extension lead

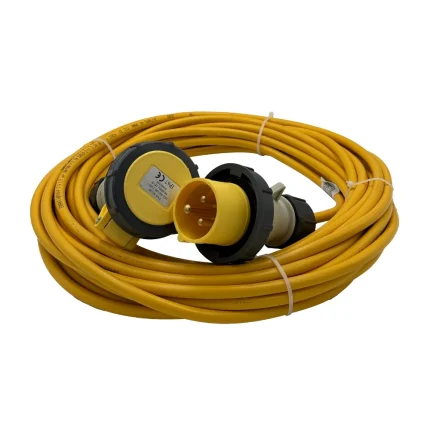

The Connexion 10827 is a yellow 25m 110V extension lead with 1.5mm cable, a 16A 110V plug and a 16A 110V coupler. It offers extra reach in a lighter cable than the 2.5mm version.

On UK construction sites, portable tools and lighting normally run on 110V supplied by a centre-tapped-to-earth site transformer, and 110V industrial connectors are colour-coded yellow under BS EN 60309.

Key features and specifications

Part number10827
Voltage110V
Cable length25m
Cable size1.5mm
Plug16A 110V
Coupler16A 110V
ColourYellow
IP ratingIP44
Safety classClass I
Frequency50/60Hz
ConstructionPVC/copper cable, nylon + PP plug

Applications

Powering lighter 110V tools and task lighting at a distance from the transformer on construction sites and maintenance work.

Choosing the right product

For heavier tools over 25m, the 25m 2.5mm lead (10803) keeps voltage drop lower. For shorter runs choose the 14m 1.5mm lead (10801) or 10m 1.5mm lead (10837).

Frequently asked questions

What is the difference between 1.5mm and 2.5mm extension lead cable?

The figure is the cross-sectional area of each conductor. 2.5mm cable has a larger conductor than 1.5mm, so it carries current with less voltage drop and less heating over longer runs. 1.5mm cable is lighter and easier to handle for shorter runs and lighter loads.

Should I fully unwind an extension lead?

Yes. Unwind or uncoil a lead completely before use, because coiled cable carrying current can overheat.

What is the difference between a 110V and a 240V extension lead?

A 110V lead is yellow and uses 110V industrial connectors to carry the reduced-voltage supply from a site transformer, which is standard practice on UK construction sites. A 240V lead is blue (industrial) or uses 13A plugs and runs from mains voltage. The connectors are deliberately incompatible.

Not sure which cable size you need? Read our extension lead cable size guide (1.5mm vs 2.5mm vs 4mm).

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specifications
Product110V Extension Lead 25m 1.5mm Cable 16amp
Part No10827
Safety LevelClass I
IP LevelIP44
Cable Diameter1.5mm
Plug16Amp
Coupler16Amp
Safety CetificatesCompliant
RoHS DirectiveCompliant
CasePVC + Copper for Cable, Nylon + PP for Plug/Coupler
Input VoltageAC110v
Output VoltageAC110v
Frequency50/60Hz
Dimensions25m in Length
ColorYellow
Outer Sheath ColourYellow
SKU10827
MPN10827
CERTIFICATIONSCE, ROHS, UKCA
GTIN5023003000056
