110V Extension Lead 14m 2.5mm Cable 16A – (10802)

Login to view price

Product Features:

  • Cable Length: 14m
  • Cable Thickness: 2.50mm
  • Voltage: 110V
  • Connections: 16A Plug and Coupler
Part Number: 10802

Download PDF   Make An Enquiry

Browse our full range of 110V extension leads, or add one of our 110V cable reels for longer runs.

Description

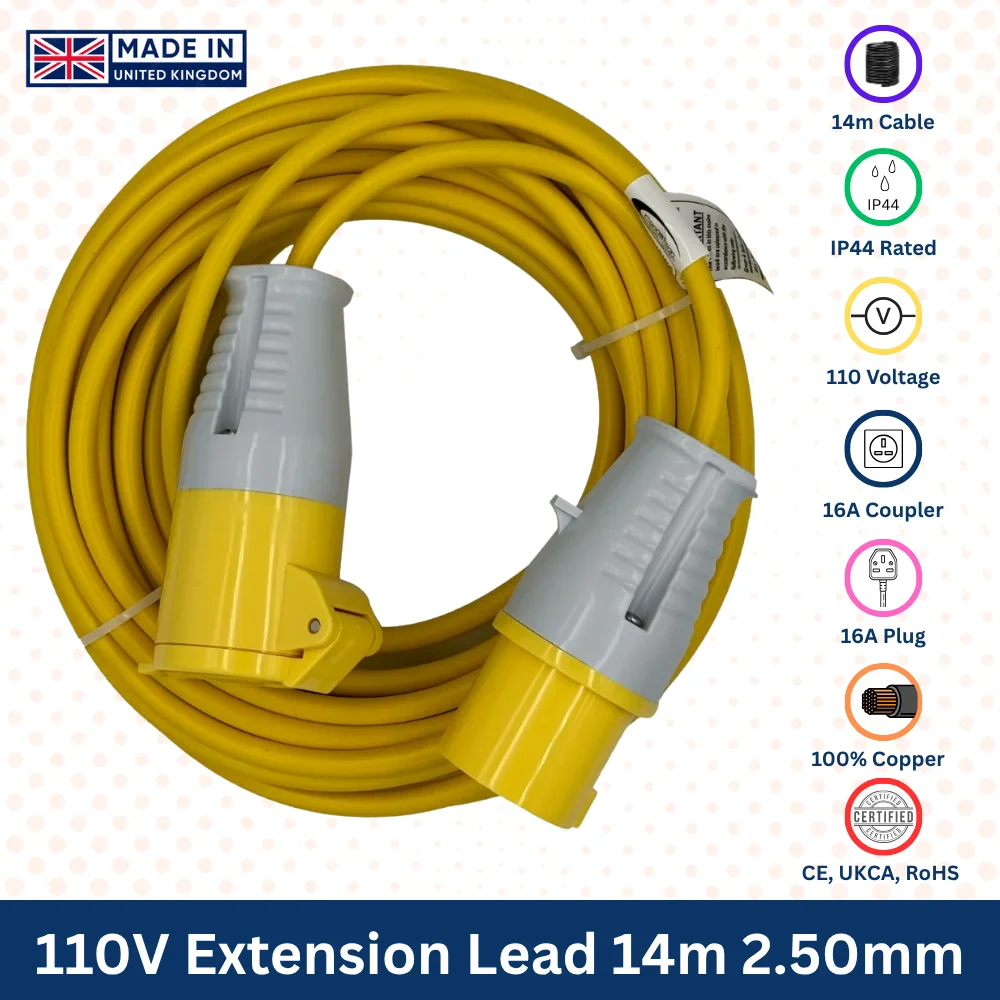

14m 110V 16A site extension lead

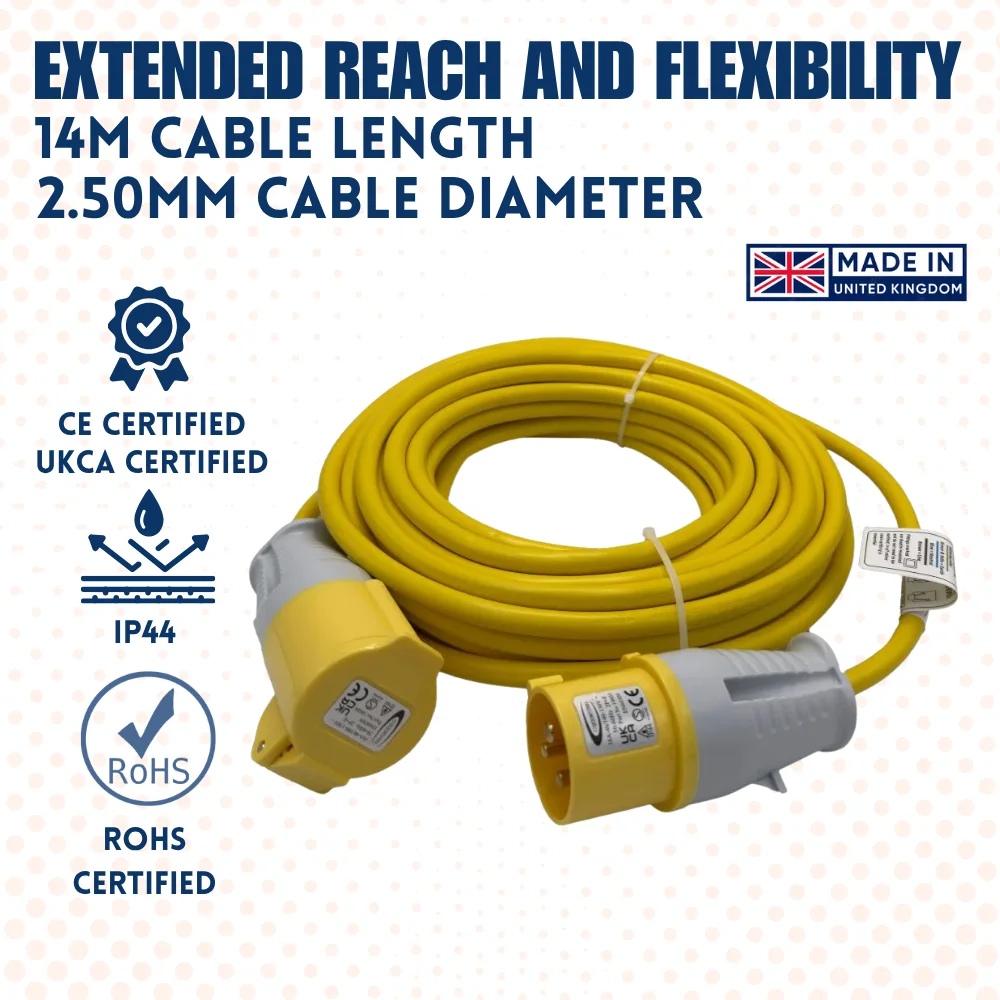

The Connexion 10802 is a yellow 14m 110V extension lead with 2.5mm² 3-core H05VV-F cable, a 16A 110V plug and a 16A 110V coupler. The heavier 2.5mm conductor makes it a robust choice for demanding 16A tools.

On UK construction sites, portable tools and lighting normally run on 110V supplied by a centre-tapped-to-earth site transformer, and 110V industrial connectors are colour-coded yellow under BS EN 60309.

Key features and specifications

Part number10802
Voltage110V
Cable length14m
Cable size2.5mm² 3-core H05VV-F
Plug16A 110V
Coupler16A 110V
ColourYellow
Plug / coupler parts10603 plug and 10604 coupler (BS EN 60309)
IP ratingIP44
Maximum current16A
CertificationsCE, RoHS, UKCA
GTIN5023003000018

Applications

Running 110V power tools, breakers, mixers and lighting on construction sites, where a heavier-gauge cable helps keep voltage drop down.

Choosing the right product

Compared with the 14m 1.5mm lead (10801), the 2.5mm cable is heavier but carries current with less voltage drop. Need more reach? Choose the 25m 2.5mm 16A lead (10803). For 32A equipment see the 14m 2.5mm 32A lead (10829).

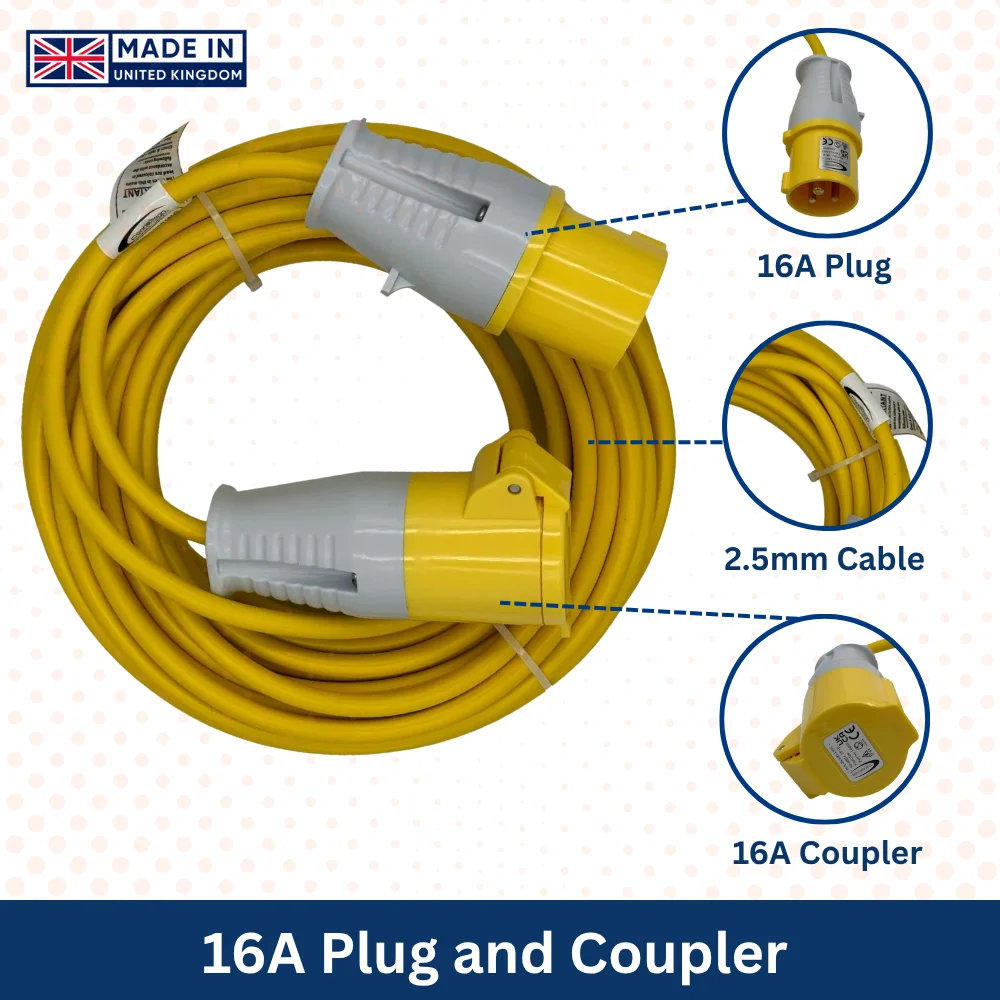

The connectors are our 16A plug (10603) and 16A coupler (10604), available separately as spares.

Frequently asked questions

What is the difference between 1.5mm and 2.5mm extension lead cable?

The figure is the cross-sectional area of each conductor. 2.5mm cable has a larger conductor than 1.5mm, so it carries current with less voltage drop and less heating over longer runs. 1.5mm cable is lighter and easier to handle for shorter runs and lighter loads.

How thick is 2.5mm cable?

2.5mm refers to the cross-sectional area of each conductor (2.5mm²), not the outside diameter of the cable.

What is the difference between a 110V and a 240V extension lead?

A 110V lead is yellow and uses 110V industrial connectors to carry the reduced-voltage supply from a site transformer, which is standard practice on UK construction sites. A 240V lead is blue (industrial) or uses 13A plugs and runs from mains voltage. The connectors are deliberately incompatible.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Not sure which cable size you need? Read our extension lead cable size guide (1.5mm vs 2.5mm vs 4mm).

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specifications
Product110V Extension Lead 14m 2.5mm Cable 16amp
Part No10802
Safety LevelClass I
IP LevelIP44
Safety CetificatesCompliant
RoHS DirectiveCompliant
CasePVC + Copper for Cable, Nylon + PP for Plug/Coupler
Input VoltageAC110V
Output VoltageAC110V
Frequency50/60Hz
Input Current16A MAX.
Cable2.5mm2 3 core PVC cable - H05VV-F
Dimensions14000mm in Length
ColorYellow
Plug110V 16A Plug to BS EN60309 - Part No.10603
Coupler110V 16A Coupler to BS EN60309 - Part No.10604
Conductor Size2.5mm
Outer Sheath ColourYellow
ShapeCircular
Inner Core ColoursBrown, Blue and Green/Yellow
Voltage Rating300/500 Volts
Main ApplicationSupply 110v Power to tools and lighting on site
Nominal Area Of Conductor mm2.5mm
Sheath Thickness mm0.8mm
Mean Overall Diameter (upper limit) mm9.1mm
Packing TypePlastic Bag + Carton Box
Quantity of Each Carton8pcs
Net Weight19.5KGS
Gross WeightApprox.20KGS
Outer Box Dimension51.5X26X23
SKU10802
MPN10802
GTIN5023003000018
CERTIFICATIONSCE, ROHS, UKCA
