240V Extension Lead 14m 2.5mm Cable 32A – (10823)

Login to view price

Product Features:

  • Cable Length: 14m
  • Cable Thickness: 2.50mm
  • Voltage: 240V
  • Plug and Socket: 32A
Part Number: 10823

Download PDF Make An Enquiry

Browse our full range of 240V extension leads, or add one of our 240V cable reels for longer runs.

Description

14m 32A 240V industrial extension lead

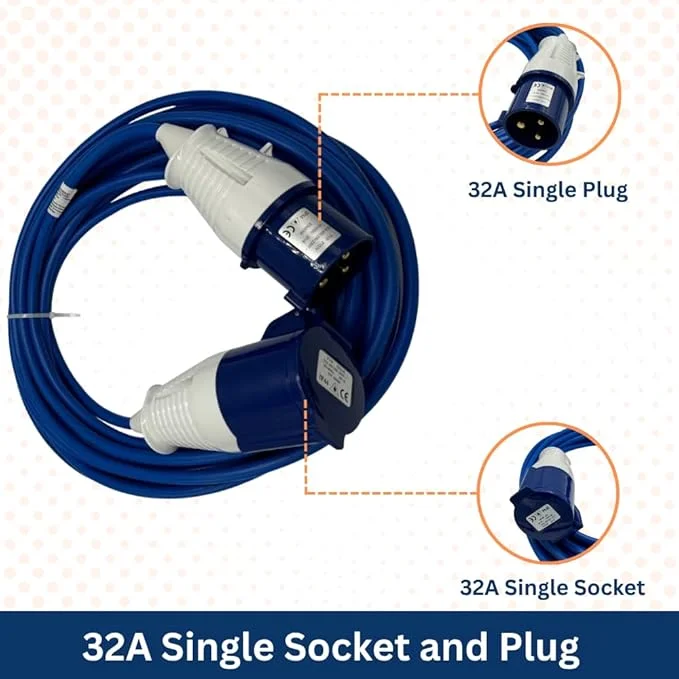

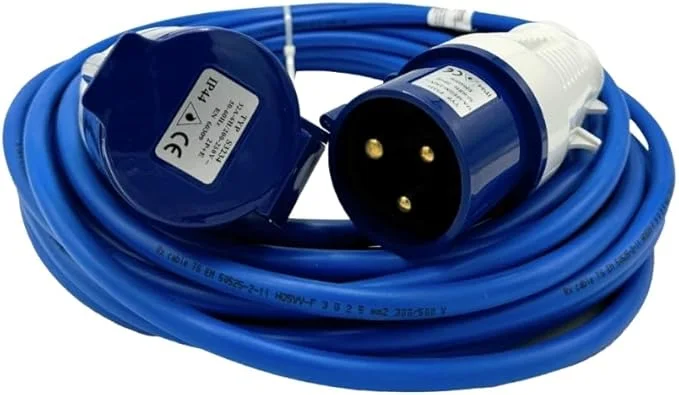

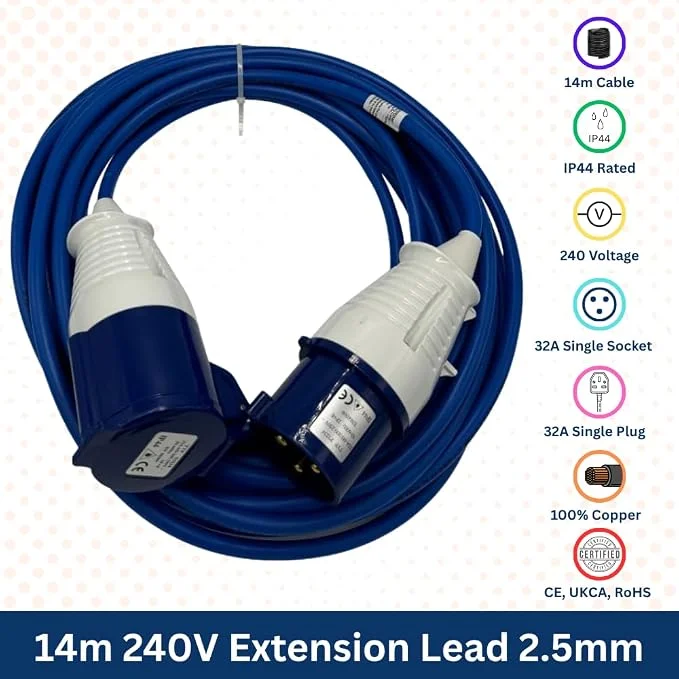

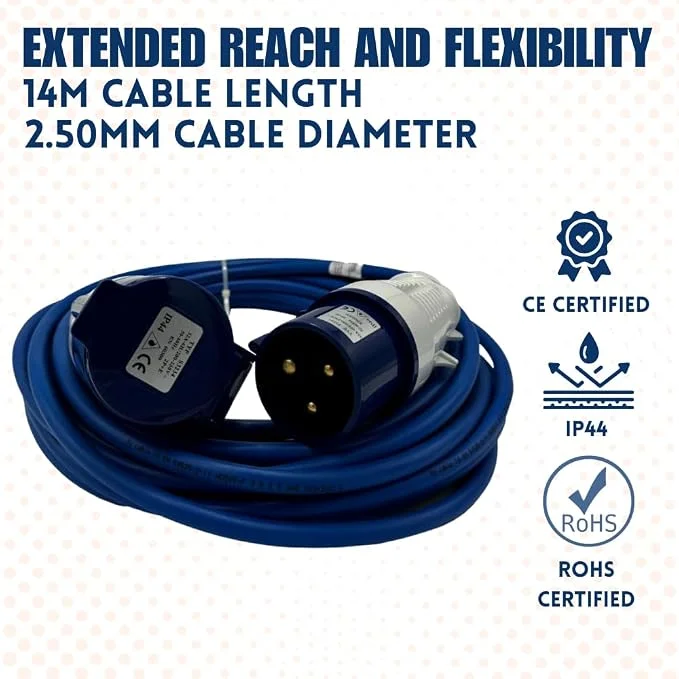

The Connexion 10823 is a 14m 240V extension lead with 2.50mm blue cable, a 32A 240V plug and a 32A 240V socket. It extends 32A single-phase supplies to higher-current equipment.

Blue industrial connectors identify a 230/240V supply under the BS EN 60309 colour code, while yellow identifies 110V. The two are deliberately keyed differently, so a blue plug will not fit a yellow socket.

Key features and specifications

Part number10823
Voltage240V
Cable length14m
Cable size2.50mm
Plug32A 240V
Socket32A 240V
Cable colourBlue
IP ratingIP44
CertificationsCE, RoHS, UKCA
GTIN5023003000155

Applications

Extending 32A 240V supplies to industrial equipment, events power and temporary installations.

Choosing the right product

For 16A equipment choose the 240V 14m 16A lead (10805). Matching connectors: 240V 32A plug and 240V 32A socket. On construction sites, 110V 32A leads such as the 110V 14m 32A lead (10829) are standard.

Frequently asked questions

Where can I buy a 32 amp 240V extension lead in the UK?

Connexion Electrical supplies this 14m 32A 240V lead (part 10823). Trade customers can log in for prices or send an enquiry.

What voltage is a blue industrial plug?

Blue identifies a 230/240V single-phase supply under the BS EN 60309 colour code. Yellow is used for 110V site equipment and red for 400V three-phase.

What does IP44 mean?

IP44 means the product is protected against solid objects larger than 1mm and against water splashed from any direction. It is suitable for splashes and outdoor site use, but it is not designed to be submerged.

Not sure which cable size you need? Read our extension lead cable size guide (1.5mm vs 2.5mm vs 4mm).

Where to buy: this product is supplied in the UK by Connexion Electrical Ltd. Trade customers can log in to see prices, or use our product enquiry form for stock, quantity and delivery questions. The downloadable data sheet above lists the full technical specification.

Technical Specification
Product240V Extension Lead 14m 2.50mm Cable 32amp
Part No10823
Input240V
Output240V
Cable Diameter2.50mm Cable
Cable Length14m
Socket32A 240V Socket
Plug32A 240V Plug
IP RatingIP44
CertificationsCE, ROHS, UKCA
GTIN5023003000155
